Regulators

Tescom 44-1123-24-002

SKU: 8018

Out of Stock

Price on request

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

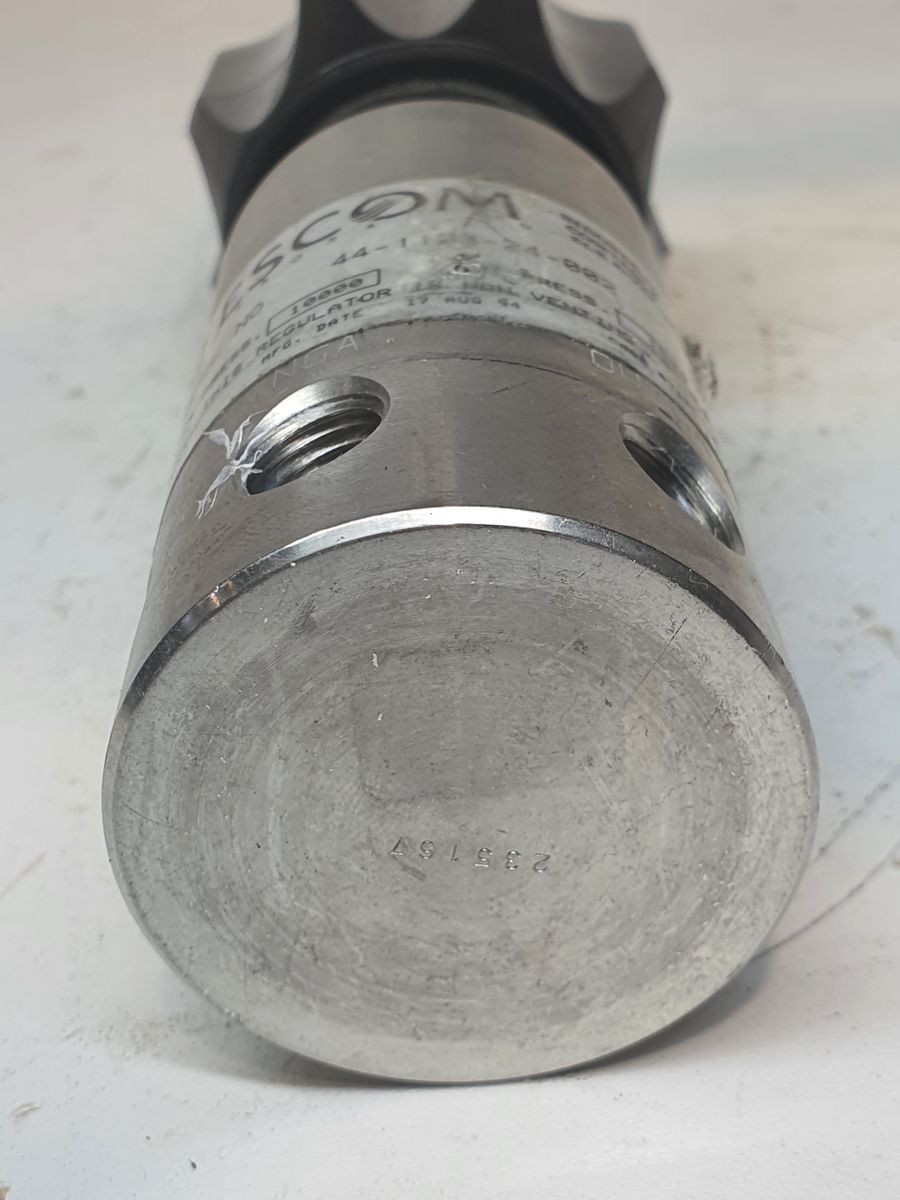

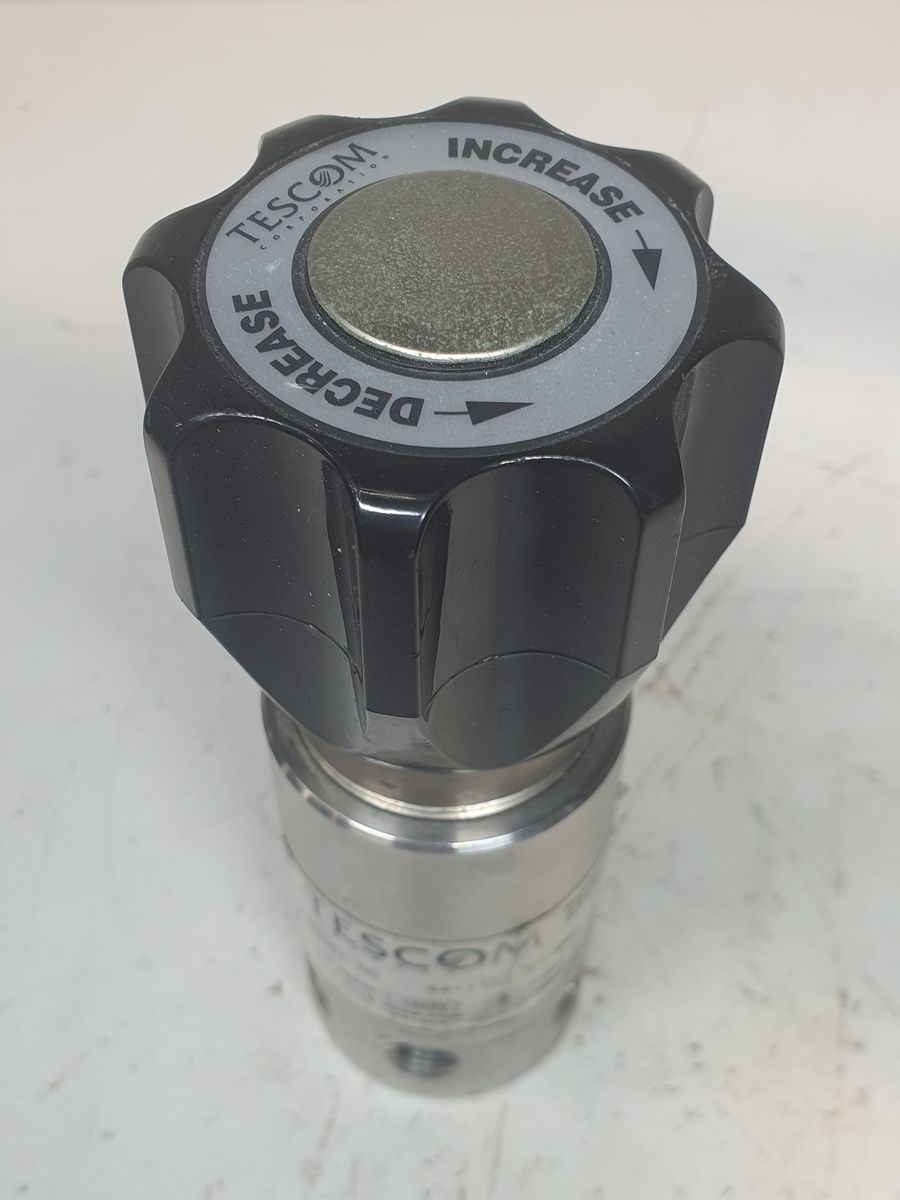

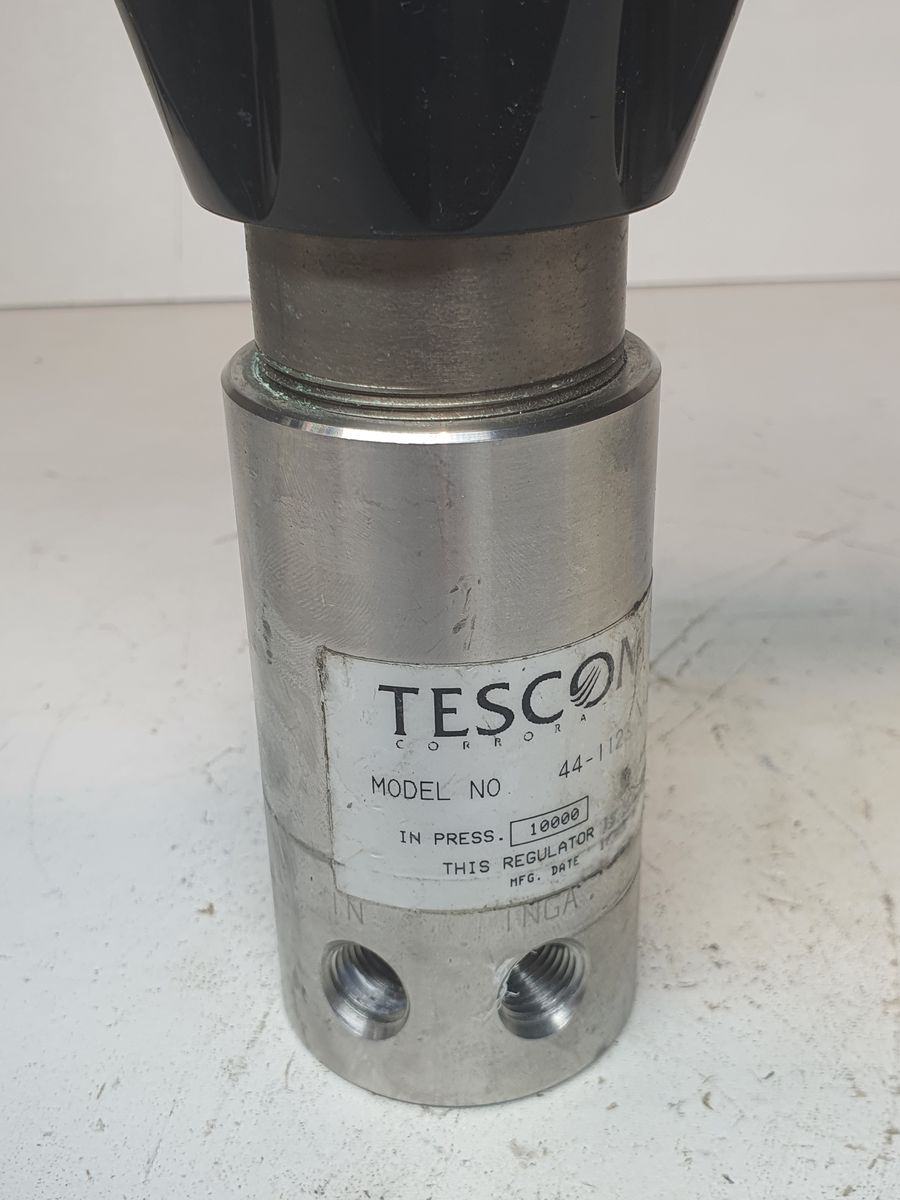

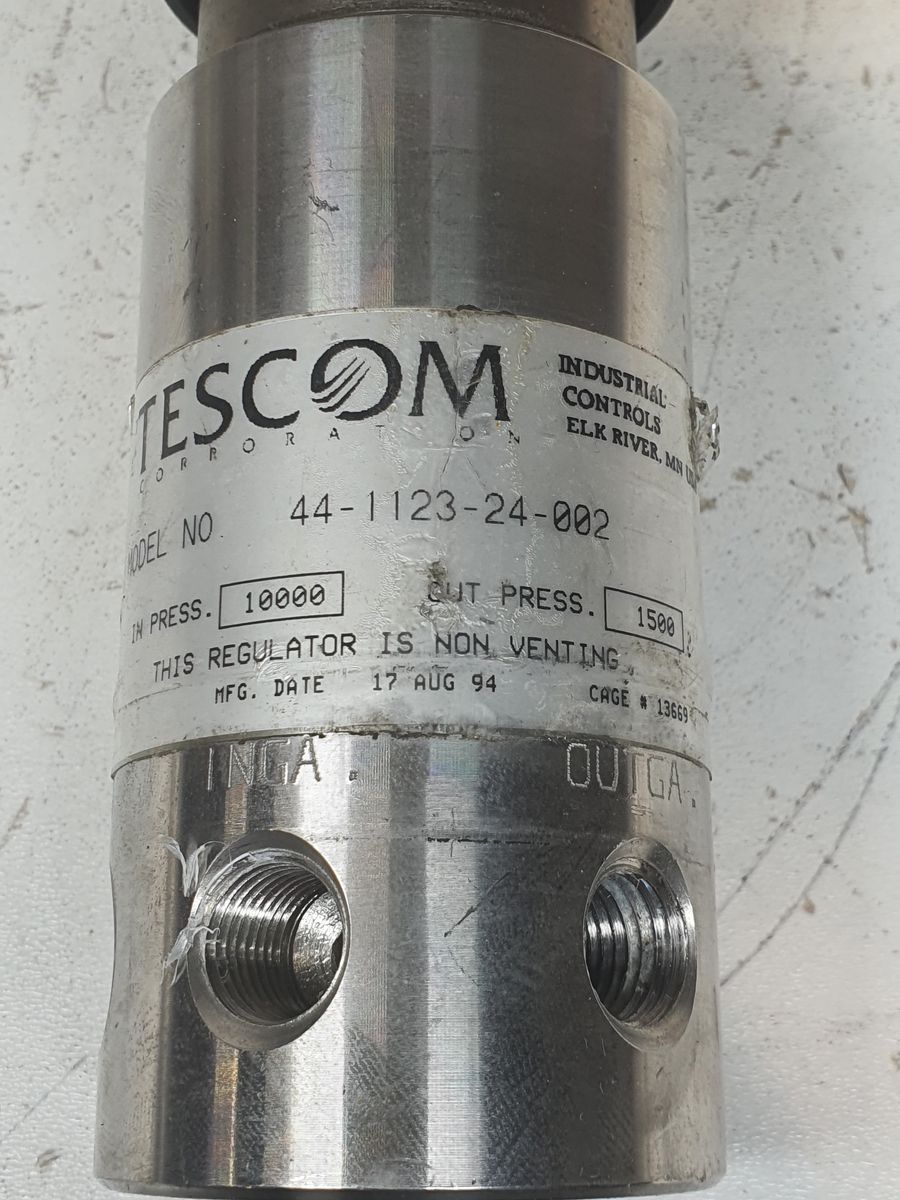

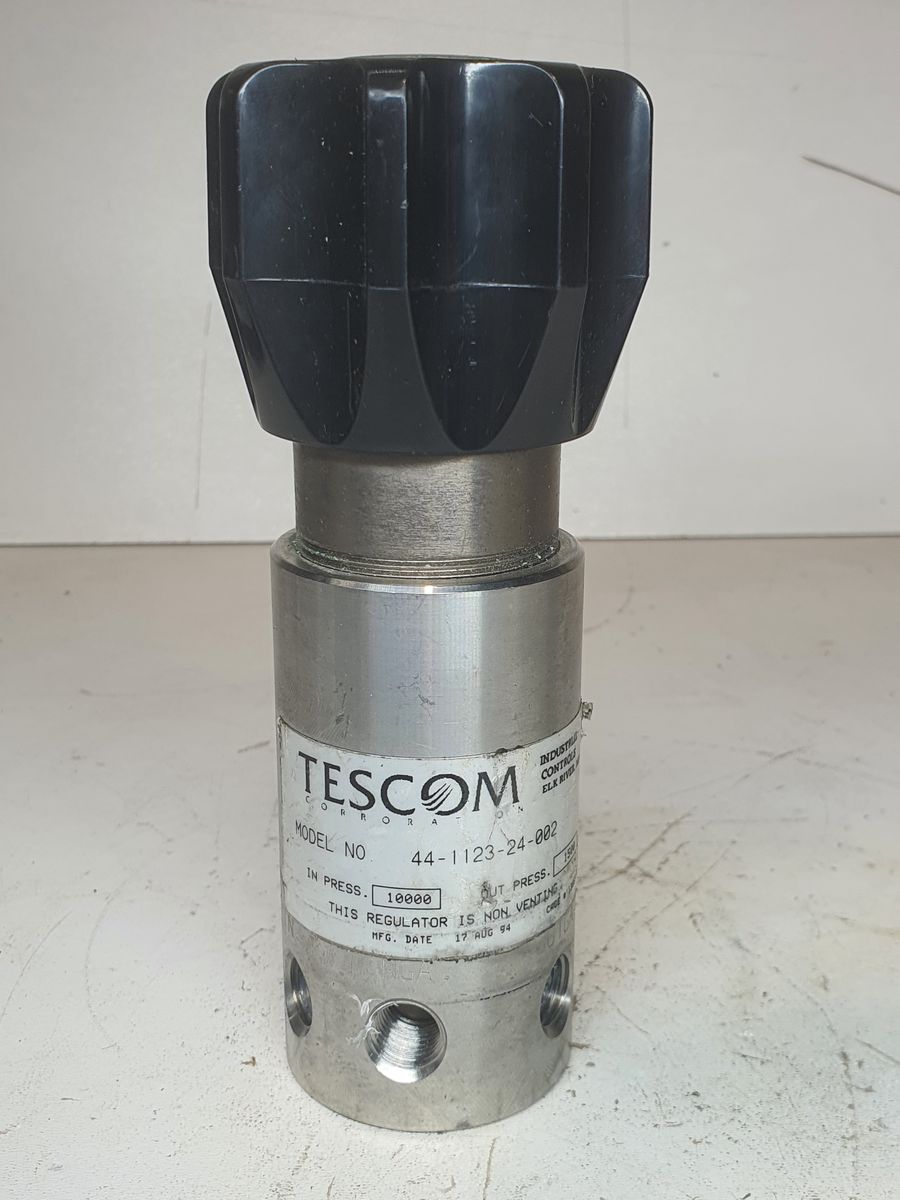

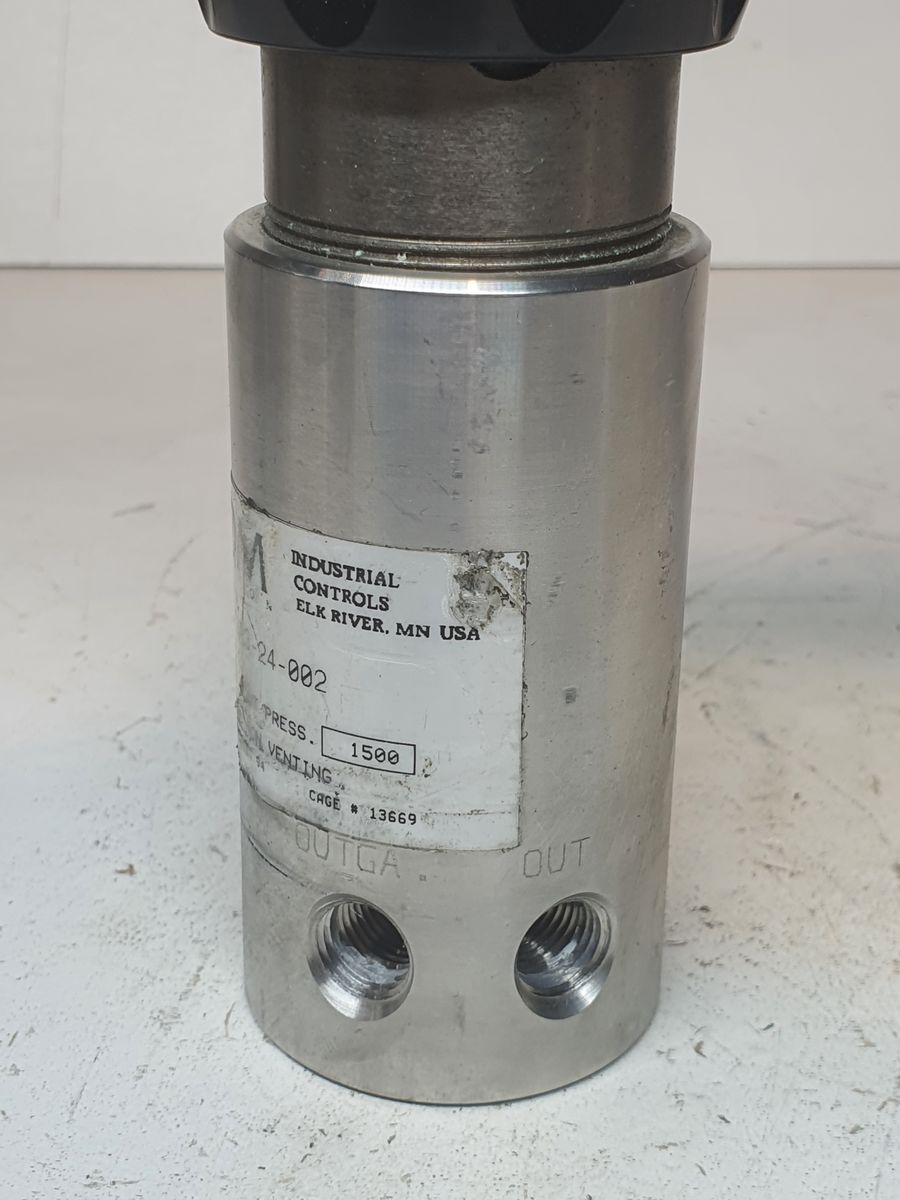

TESCOM 44-1123-24-002

Specification Table

Parameter	Details
Series	TESCOM 44-1100 Series Pressure Regulator Control
Model / Part Number	44-1123-24-002
Function	Pressure Reducing Regulator (Low-flow, Spring-Loaded)
Maximum Inlet Pressure (Stainless Steel)	10,000 psig (690 bar)
Outlet / Controlled Pressure Range	10–1500 psig (0.69–103 bar)
Design Proof Pressure	150% of maximum rated inlet
Leakage	Bubble-tight
Operating Temperature	−40°F to 165°F (−40°C to 75°C)
Flow Capacity (Cv)	0.06
Maximum Operating Torque	35 in-lb (3.95 N·m)
Body Material	303 Stainless Steel
Main Valve Seat Material	Polyimide (Vespel®)
Vent Valve Seat Material	CTFE
O−Ring Material	Buna-N
Back-up Ring Material	PTFE
Remaining Internal Parts	300 Series Stainless Steel
Filter Material	Stainless steel body: 15 µm nominal (303 SS)
Port Size & Type	1/4″ NPTF (female)
Load Type	Spring loaded
Weight (Approx.)	4.8 lbs (2.2 kg)
Standard Features	Piston-sensed design, vent to zero capability, inlet/outlet gauge ports
