Pneumatic Actuators

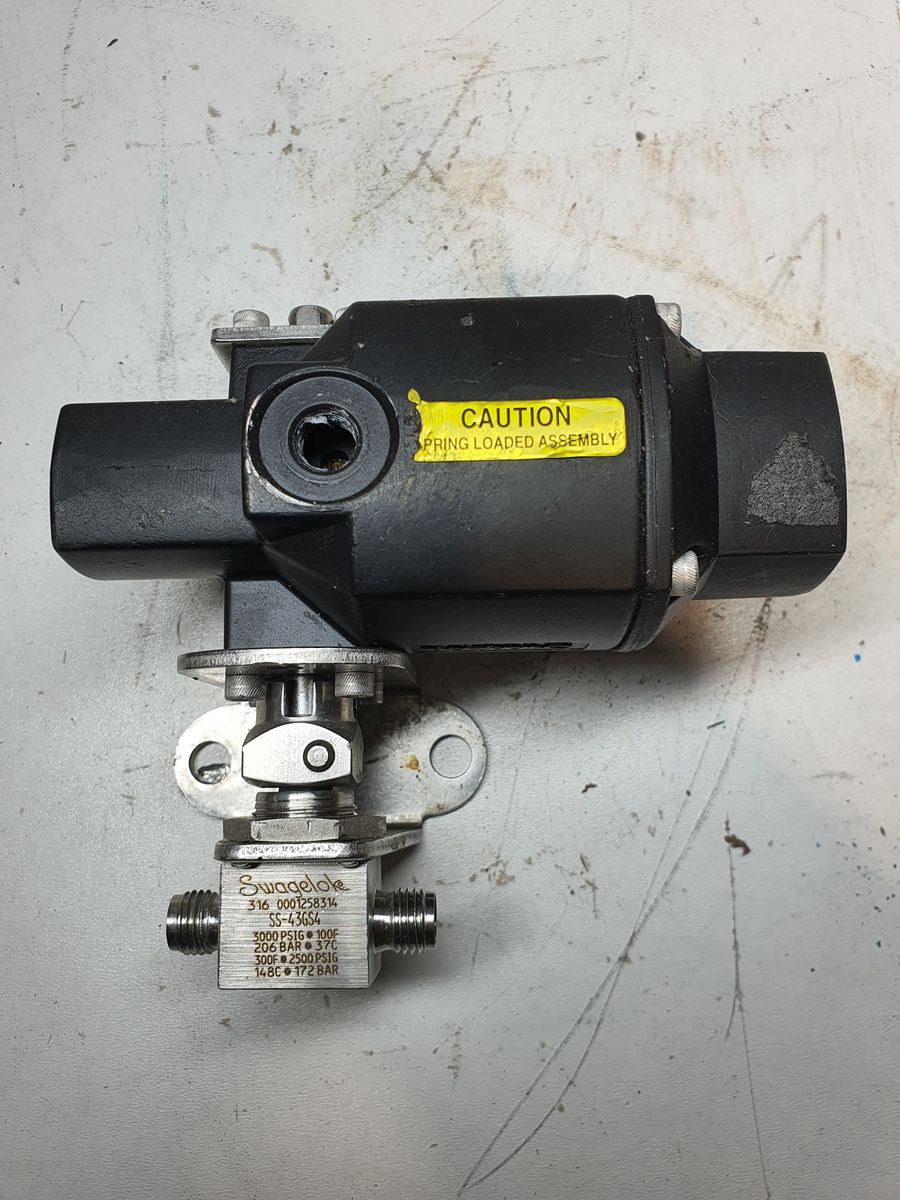

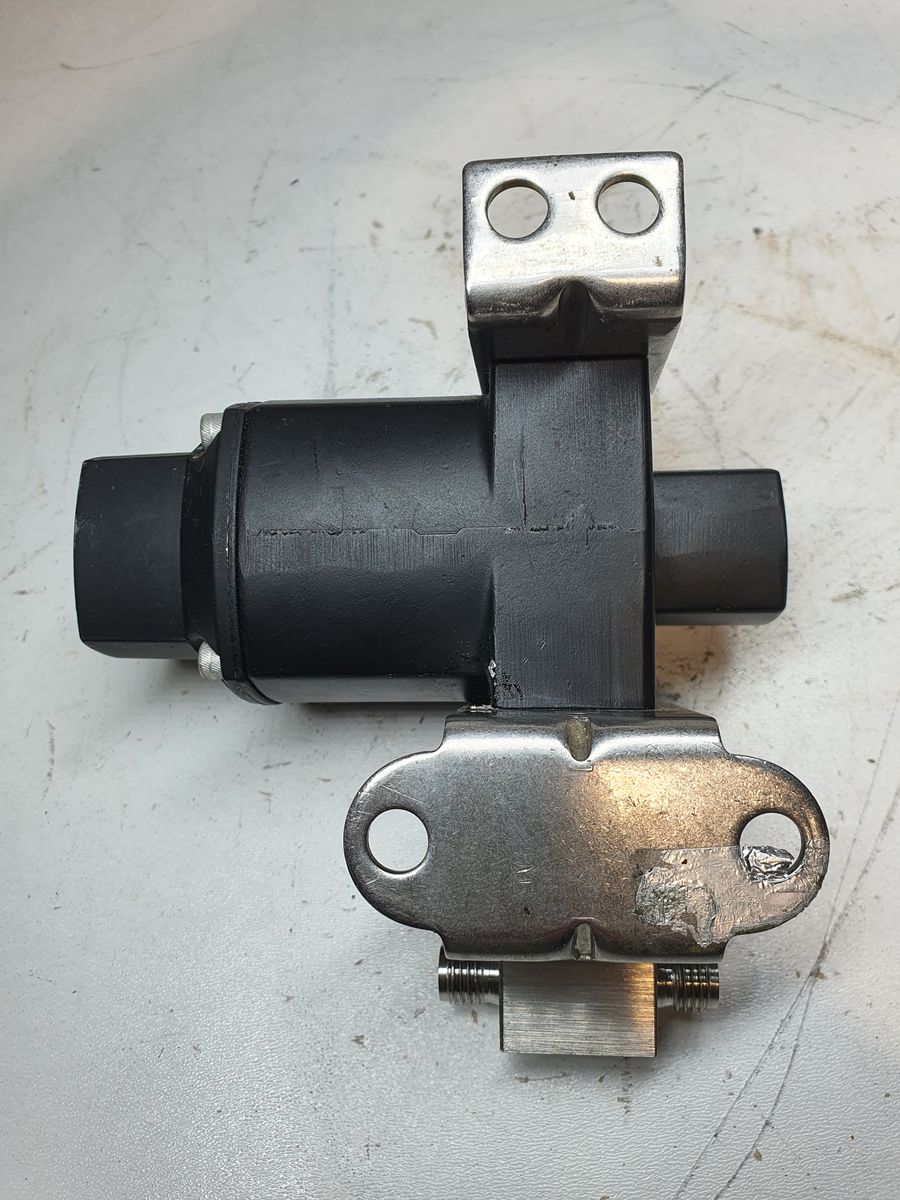

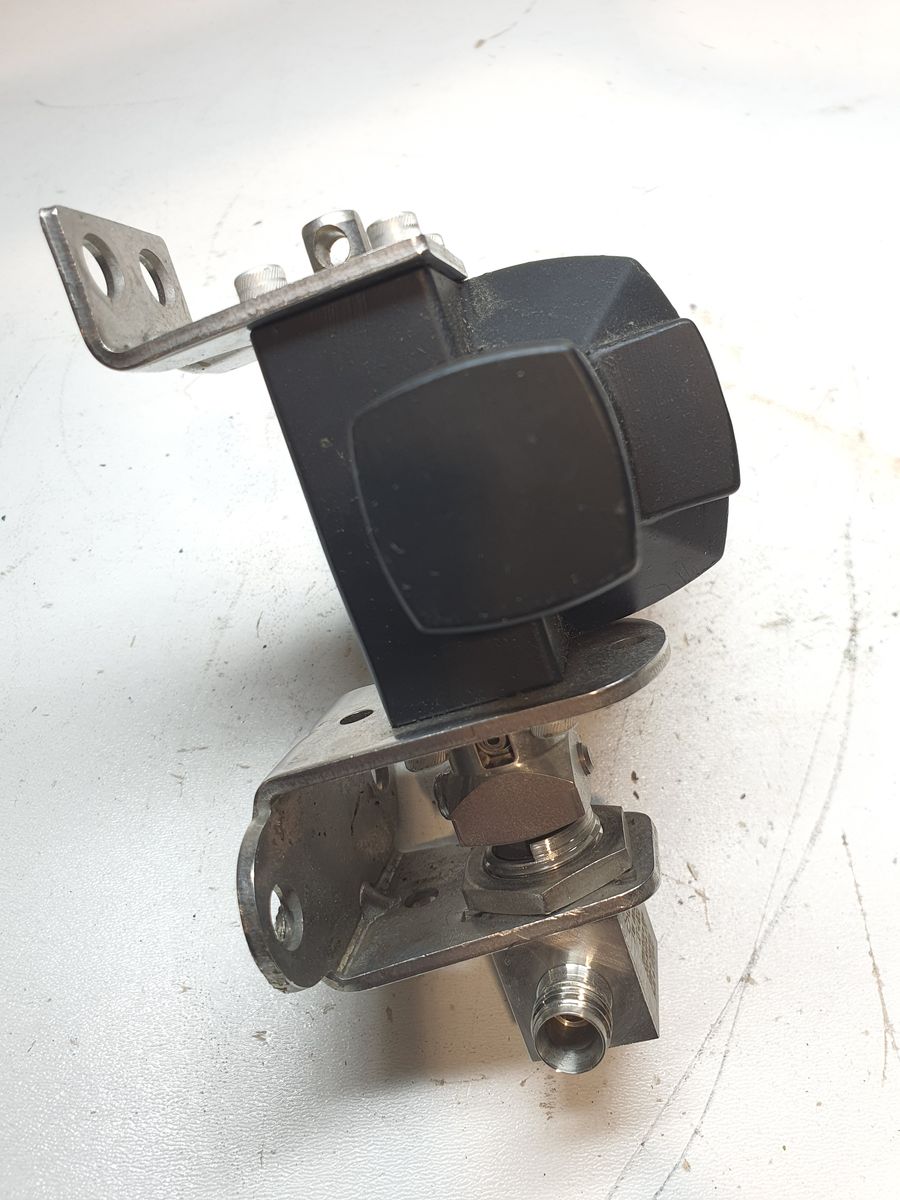

Swagelok 131SR / SS-43GS4

SKU: 4017

Out of Stock

Price on request

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

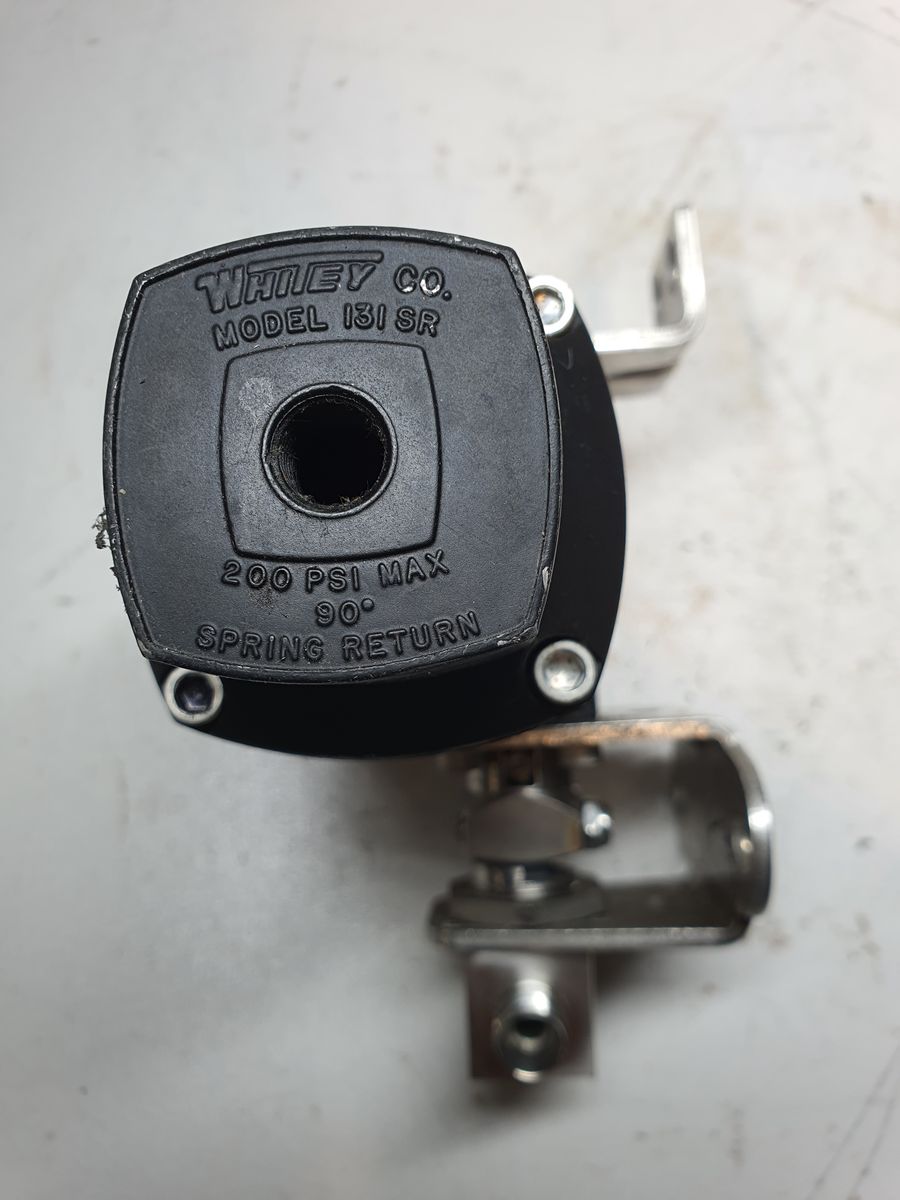

MS-131-SR — 131 Series Pneumatic Spring Return Actuator

Attribute	Value
Actuation Range	90° Actuation
Actuator Air Displacement Volume in.3 (cm3)	1.5 (24.6)
Actuator Operation Mode	Spring Return
Cleaning Process	Standard Cleaning and Packaging (SC-10)
For Series	131 Series

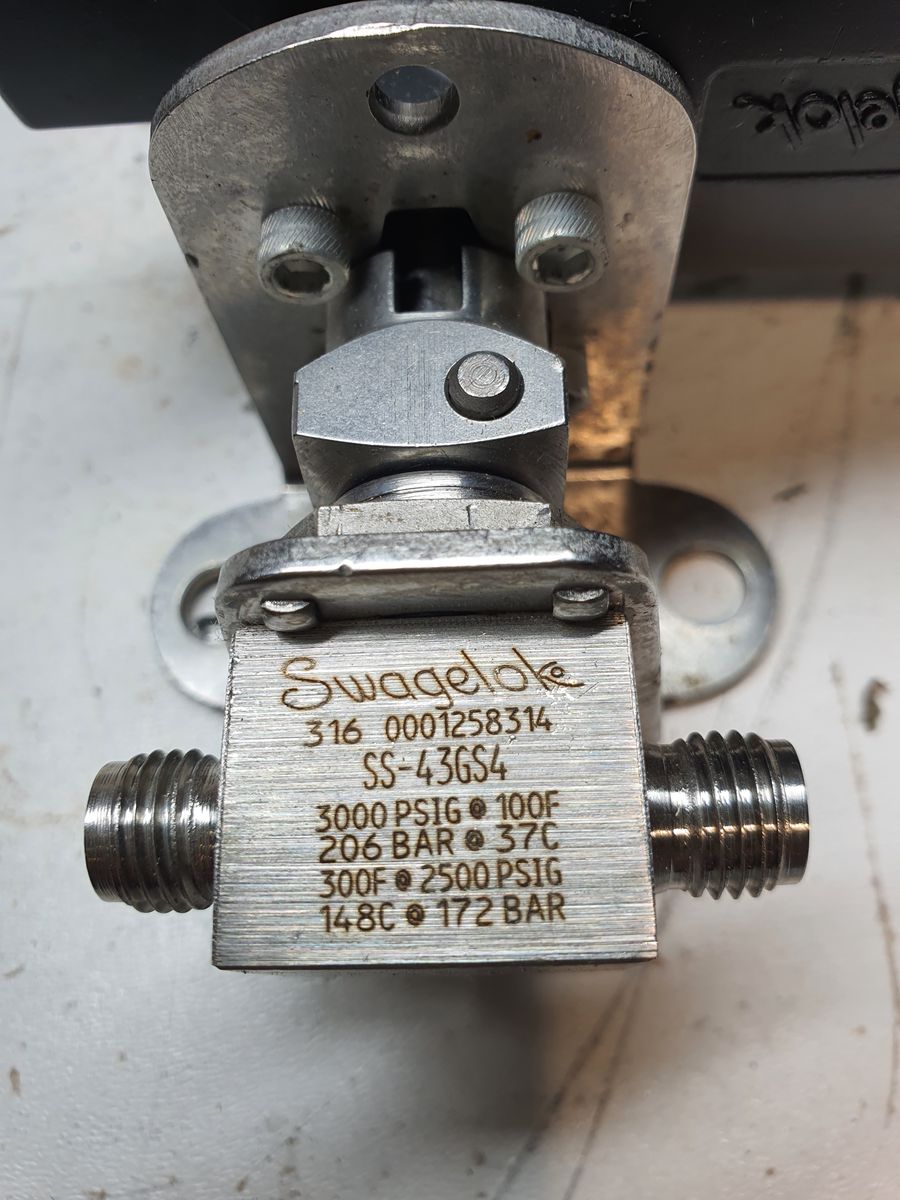

SS-43GS4 — Stainless Steel 1-Piece 40G Series Ball Valve, 1.4 Cv, 1/4 in. Swagelok Tube Fitting

Attribute	Value
Ball/Stem Material	Stainless Steel
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Tube Fitting
CV Maximum	1.4
Flow Path	Standard
Flow Pattern	2-Way, Shutoff, Straight
Handle Color	Black
Handle Style	Lever
Low Emissions Certified	Yes
Orifice	0.187 in /4.7 mm
Packing Material	Modified PTFE UHMWPE
Ring/Disc Material	Stainless Steel
Room Temperature Pressure Rating	3000 PSIG @ 100°F /206 BAR @ 37°C
Testing	Testing according to WS-22
