Regulators

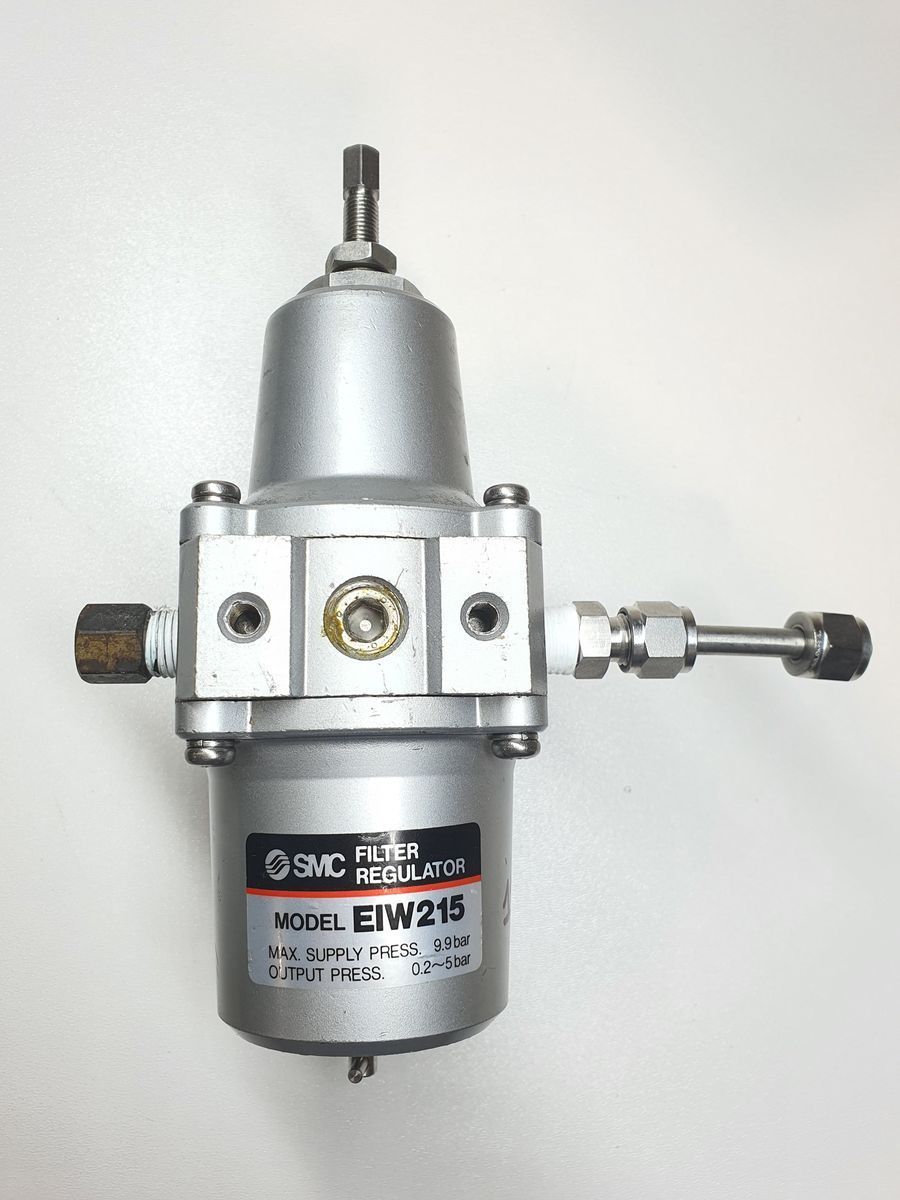

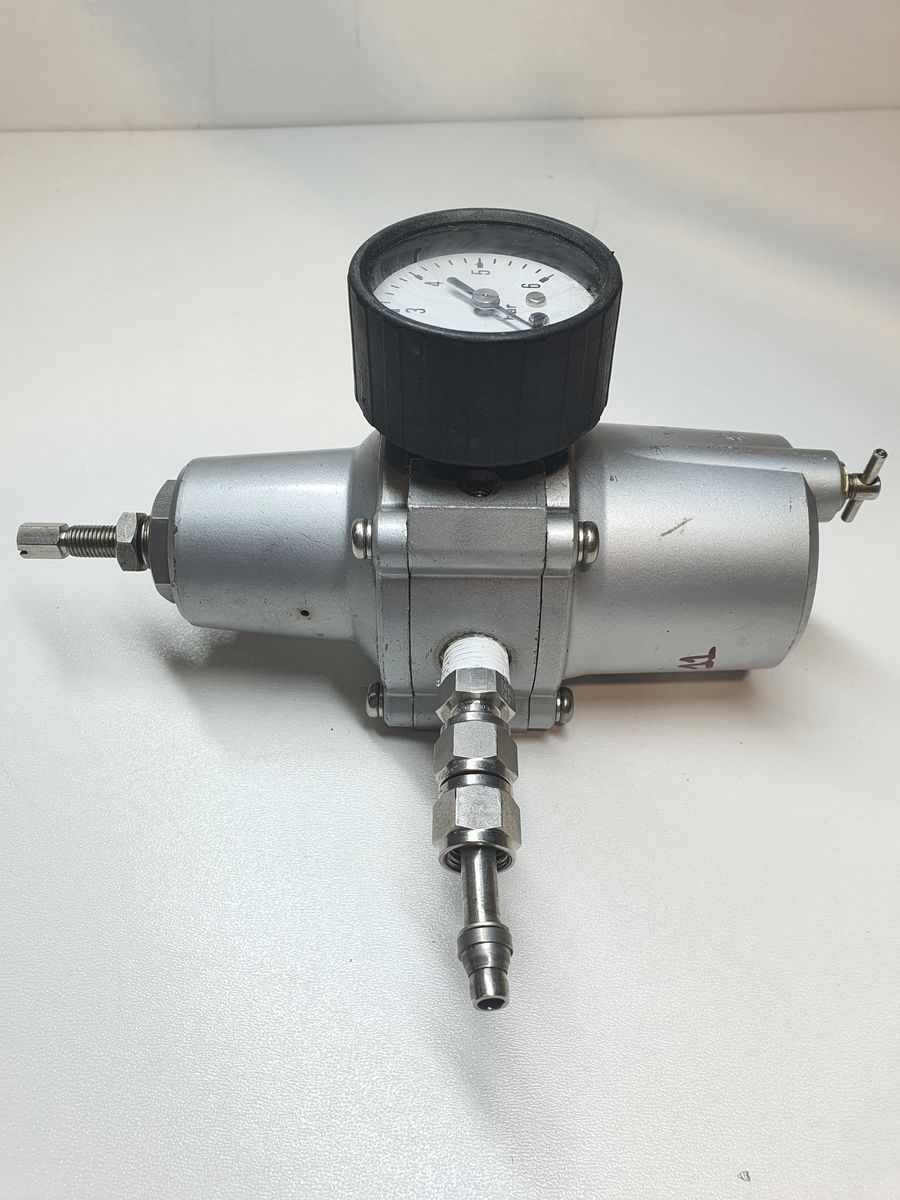

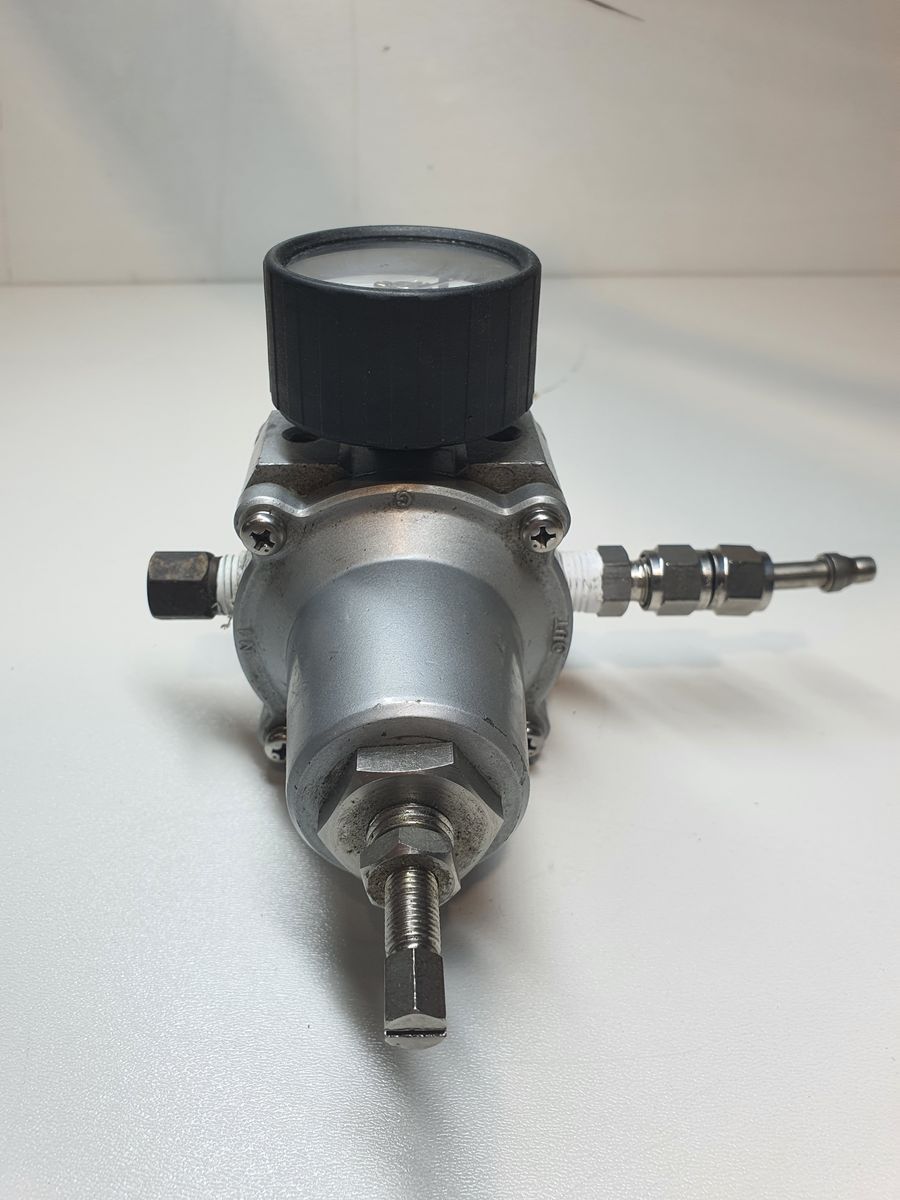

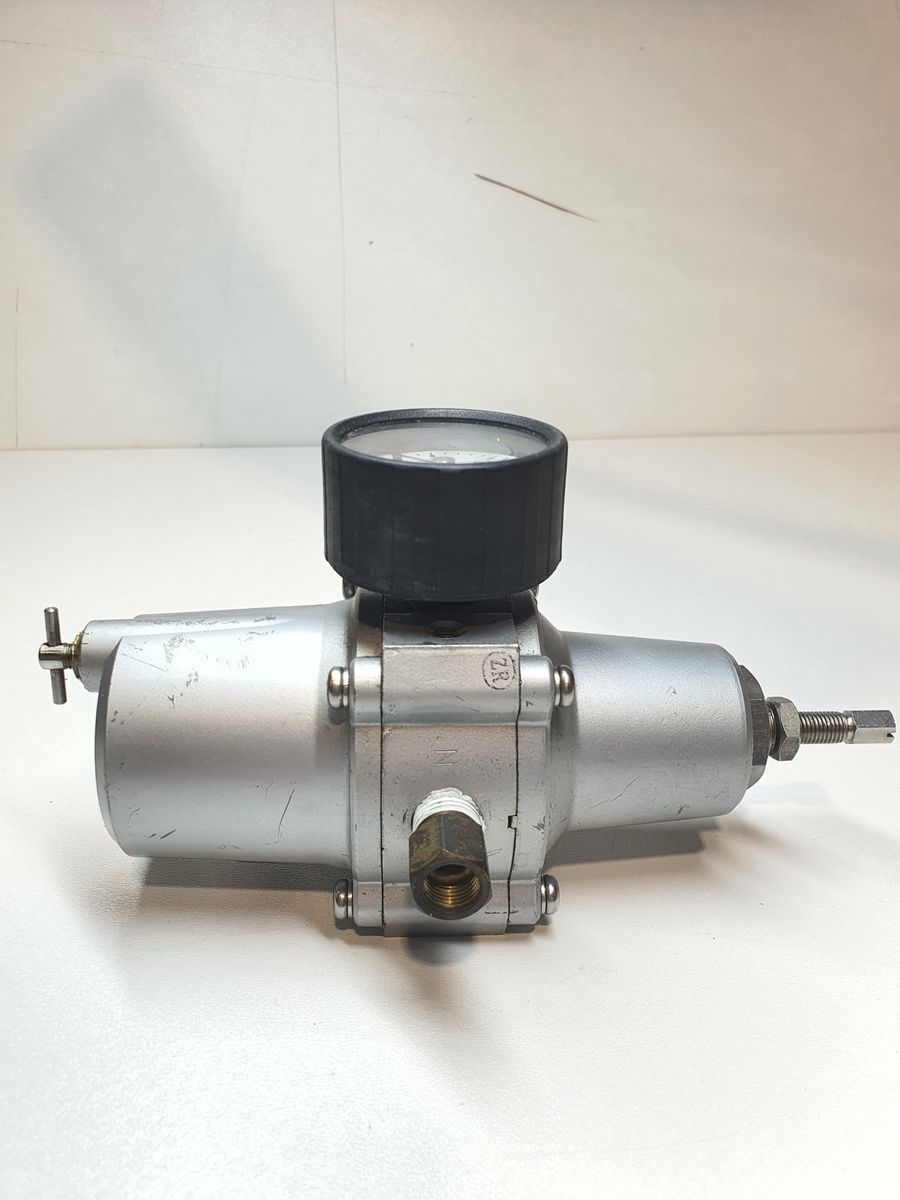

SMC EIW215

SKU: 8005

Out of Stock

Price on request

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Description

SMC EIW215 Filterregelaar – Compacte luchtvoorbereidingseenheid De SMC EIW215

Category	Parameter	Specification
Type	Combined filter + pressure regulator (air preparation unit)
Filtration	5 µm
Regulator Function	Maintains stable, constant outlet pressure even with fluctuating inlet pressure
	Adjustable Pressure Range	0.2–5 bar (0.02–0.5 MPa)
	Application	Accurate pressure control for sensitive pneumatic systems
Pressure & Operating Values	Maximum Supply Pressure	9.9 bar (1.0 MPa)
	Designed For	Standard industrial compressed air systems
	Flow Capability	Low to medium flow pneumatic circuits
Connections & Mounting	Port Size	1/4" NPT (standard for EIW215 model)
	Mounting Options	Inline or bracket mount, depending on installation
Construction	Housing	Industrial, corrosion-resistant materials
	Reservoir Type	Transparent reservoir for easy inspection (polycarbonate or metal depending on configuration)
	Drain Type	Manual or automatic (varies by configuration)
